GeoGebra extension for Numbas

GeoGebra extension for Numbas

An extension for Numbas which integrates GeoGebra materials.

To use this extension in a question, tick the "GeoGebra" option on the Extensions and Scripts tab.

All the GeoGebra resources are loaded from geogebra.org, so this extension WILL NOT work offline, or in environments where that domain is blocked or otherwise inaccessible.

Warning: At the moment, there's no way for this code to detect when the GeoGebra embedding fails, either due to an incorrect ID or a network issue. If you just get "geogebra applet loading..." for a long time, check your browser's console.

JME functions

geogebra_applet(id or dimensions, [object definitions], [object-part links]) → ggbapplet

Load a GeoGebra material or create a blank worksheet, and optionally modify or create some objects and set up links between objects and question parts

The parameters begin with either the ID of a material to load from geogebra.org, or a pair of numbers representing the width and height of a blank applet worksheet. The material ID is or the URL of the material, such as https://www.geogebra.org/m/jJ3zQ29z or http://ggbm.at/jJ3zQ29z, or just the random-looking bit, e.g. jJ3zQ29z.

The next parameter is an optional dictionary of definitions (or re-definitions) of objects. The definition can be a value on its own, or a dictionary of properties to set.

If you give a dictionary of properties, the following properties are understood:

The definition can be:

If the object with the given name is already defined in the applet, then it is updated with the new definition you give. So you can set up your whole worksheet in the GeoGebra editor with placeholder values, and then replace them with the values generated by your question when it runs.

The optional final parameter is a list of links between GeoGebra objects and Numbas parts, in the format [object or exercise name, part id]. When the object changes in GeoGebra, the answer input for the corresponding part is updated, and vice versa.

Be careful about linking dependent objects to part answers: if the student changes the part's answer input, the GeoGebra worksheet can't be updated to reflect that. So only link independent objects to part answers. If you want to use the position of a dependent object in the marking of a part, use an 'extension' type part and the functions detailed below to get the part's position in a custom marking algorithm.

The object returned by this function can be embedded in any content area just like an HTML value.

Example usage

geogebra_applet('https://www.geogebra.org/m/jJ3zQ29z',[A: vector(ax,ay), B: vector(bx,by), C: vector(cx,cy)])

Loads the given worksheet, and moves points A,B and C to the given positions.

geogebra_applet(800,500,[A: ["definition": vector(1,0), "color": red"]], [["A","p0"]])

Creates a blank worksheet with size 800 by 500 pixels, adds an object A at (1,0) and links the position of A with the answer to the first part in the question.

geogebra_file(filename, [object definitions], [object-part links]) → ggbapplet

Load a GeoGebra file from the given file.

The filename parameter can be the name of a resource attached to the question, or the URL of any .ggb file.

The 'object definitions' and 'object-part links' parameters work the same way as for geogebra_applet.

geogebra_base64(base64, width, height, [object definitions], [object-part links]) → ggbapplet

Create a GeoGebra applet from the given base64-encoded .ggb file, with the given width and height in pixels.

If you have the base64-encoded version of a .ggb file, this function will create a GeoGebra applet with the given dimensions and load the given worksheet in it.

One way of obtaining the base 64 string for a GeoGebra applet is to run ggbApplet.getBase64() on a page containing the applet. Note: the variable won't always be called ggbApplet - on geogebra.org, for example, a unique string of digits is appended to the variable name.

The 'object definitions' and 'object-part links' parameters work the same way as for geogebra_applet.

Functions to obtain properties of objects

Warning: Because of the way GeoGebra loads, these functions only work once the applet has been displayed. That means they don't work during question variable generation. The intended use for these functions is in part marking algorithms.

The following functions get properties of a named object from a GeoGebra applet created with one of the functions above. They are all have the calling signature property(app,object name), e.g. value(app,"A").

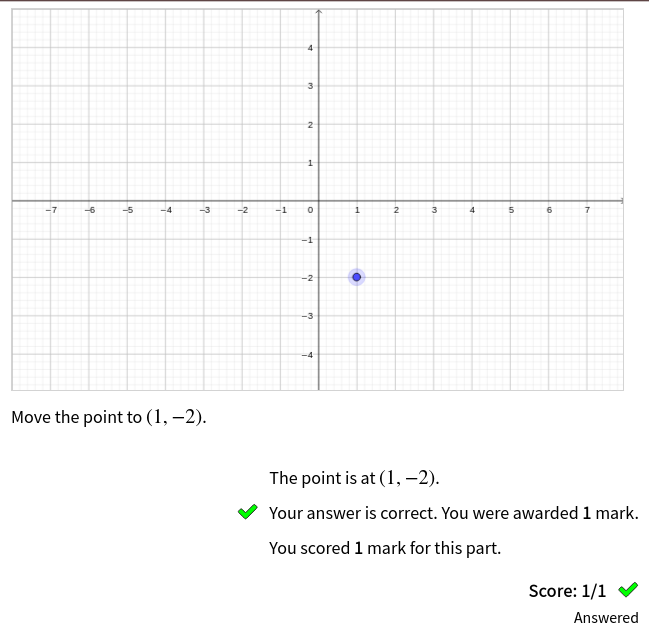

An example marking algorithm

This marking algorithm marks the part as correct if the point A is positioned at the coordinates (1,2). The GeoGebra applet has been defined in the variable app.

``` a_pos (The position of the object A, as a vector): value(app,"A")

mark: feedback("A is at $\var{latex(a_pos)}$"); correctif(a_pos=target_position)

interpreted_answer: a_pos ```

JavaScript functions

createGeogebraApplet(options,replacements,parts,question)

options is a dictionary of GeoGebra applet parameters. This function returns a Promise object which resolves to an object {app: <GeoGebra applet>, element: <HTML element containing the applet>}.

You could use this function to load an applet and then manipulate it with the GeoGebra JavaScript API before embedding it in the page.

Note that because this function returns a promise, the applet will not have finished loading at the time the question is displayed to the student. You'll have to insert the applet in the page yourself once the promise resolves.

tokToGeoGebra(token)

Convert a Numbas JME token to a GeoGebra command.

geoGebraToTok(app,name)

Get a JME token representing the value of a GeoGebra object.

app is a GGBApplet object, and name is the name of the GeoGebra object to convert.

Objects of type 'point' are converted to vectors, 'numeric' to numbers, and everything else to strings.
